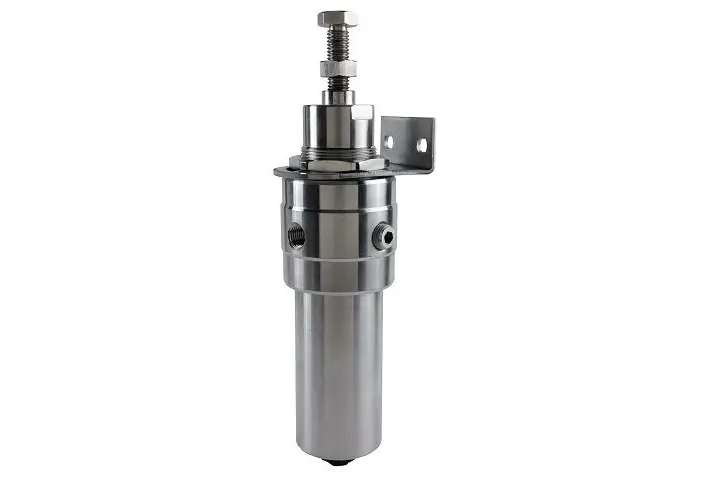

FB Series - Stainless Steel filter regulator
Overview
- Filter Stainless steel regulator, specially designed for corrosive environments, for example: marine environments, oil and gas production, chemical or food processes, medical analysis, etc.
- Gauge port size.
- Filter element de Stainless steel 316.
- They comply with NACE Standard MR-0175.
Technical specifications
Fluid
Compressed air
Grade of filtration
5 μm
Pneumatic connection
1/4", 1/2"
Working temperature
-20 a 80°C
-20 a 180°C
Set pressure range
15.0-150 psi (1 - 10 bar)
Maximum operating pressure
150 psi (10.5 bar)
Body Material
Stainless steel 316
Bowl Material
Stainless steel 316
Seals
NBR
|
Model |
Connection |
CAD & PDF
|
|
FB2-020N-D
|
1/4" |
Coming soon |
|
FB2-022N-M
|
1/4"
|
Coming soon |
|
FB6-040N-D
|
1/2" |
Coming soon |
|
FB6-042N-M
|
1/2" |
Coming soon |
