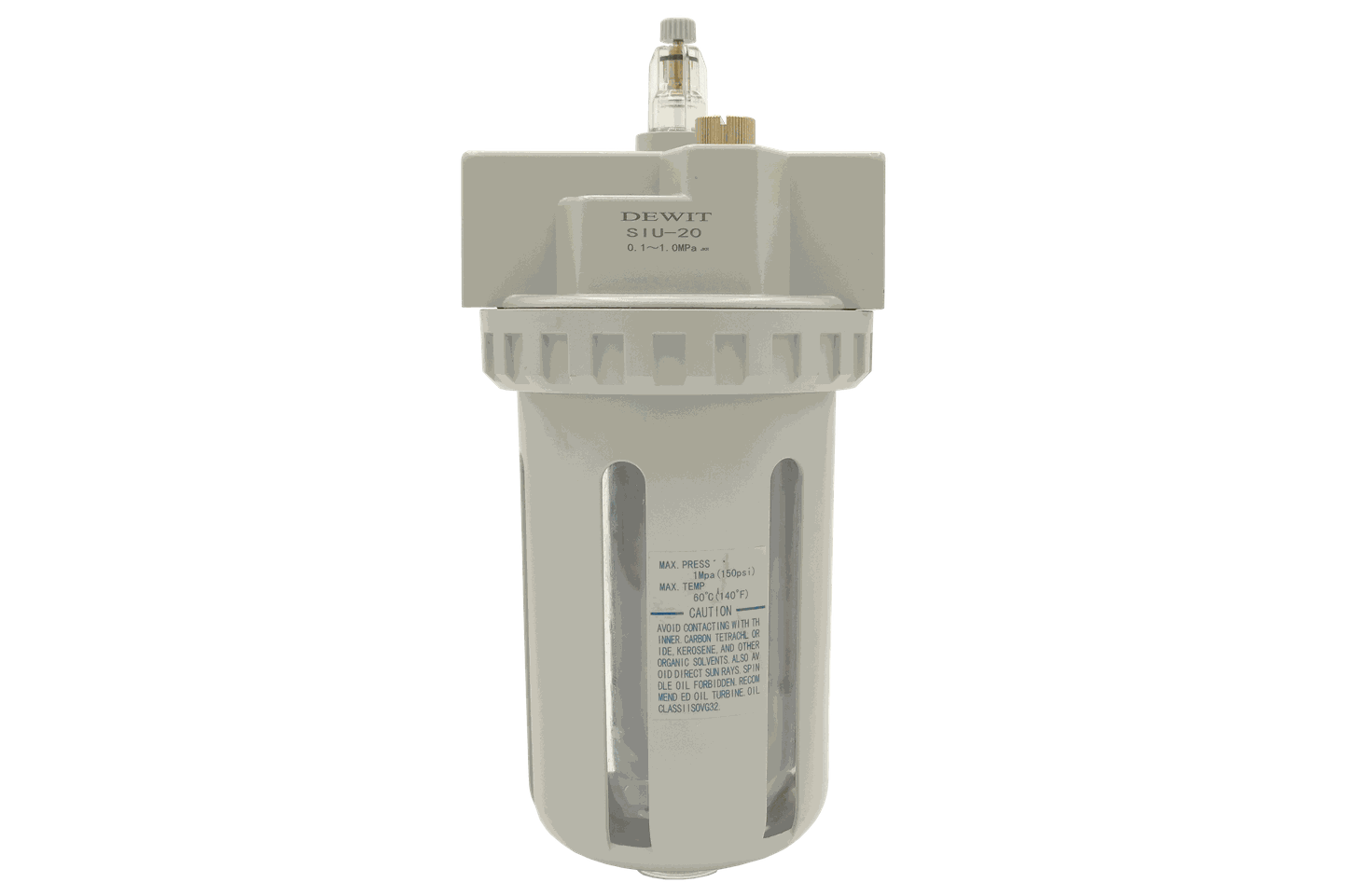

SIU - High Flow Lubricator

Overview

Proportional lubricator with precision oil metering.
Design to work with high flow rates.
Dosing precision.
Lubrication adjustment knob.
Connection up to 2 NPT.
Bowl with plastic guard.

Download

Technical specifications

Fluid

Compressed air

Lubrication type

Pressure dosing

Pneumatic connection

1/4", 3/8", 1/2", 3/4", 1", 1 1/2", 2"

Working temperature

32 to 140°F (0 to 60°C)

Mounting type

Direct installation in pipe

Maximum pressure

1.0 MPa

Body Material

Aluminum

Bowl Material

Polycarbonate / Polymer (metal guard)

Seals

NBR

Download CAD

Model	Connection	CAD & PDF
SIU-08	1/4"
SIU-10	3/8"
SIU-15	1/2"
SIU-20	3/4"
SIU-25	1"
SIU-40	1 1/2"
SIU-50	2"
