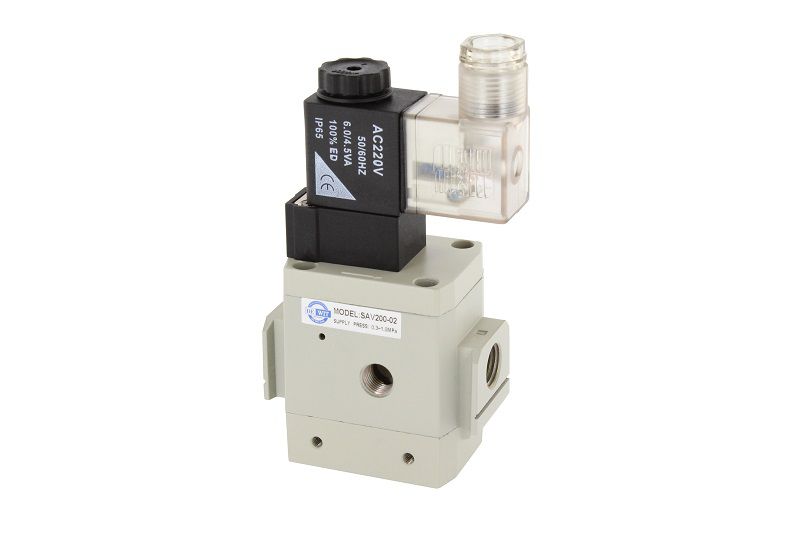

SAV - Soft start up valve

Overview

Electric Shut - off valve with discharge, to feed pneumatic systems.
Option in different voltages.
Manual override.
Modular installation with modules of the same Series.
Gauge port size.
Adjustable coil.

Download

Technical specifications

Fluid

Compressed air

Valve function

Valve 3/2

Normal position (rest)

Normally closed

Control type

Solenoid pilot

Working Temperature

32 to 140°F (0 to 60°C)

Working pressure

0.2 to 1.0 MPa

Piloting type

Internal

Body material

Aluminum

Seals

NBR

Download CAD

Model	Connection	CAD & PDF
SAV200-02	1/4"
SAV300-03	3/8"
SAV400-04	1/2"
