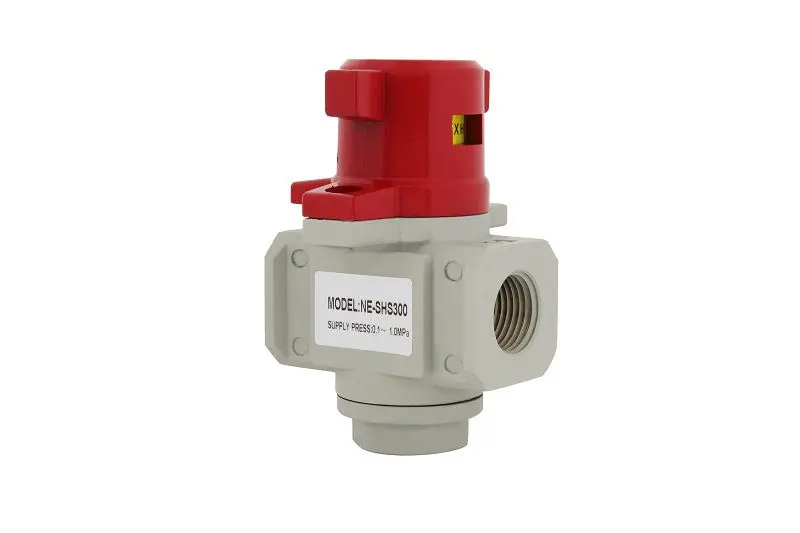

SHS - Shut off valve

Overview

Manual Shut - off valve (Safety)
Modular installation with modules of the same Series.
Visual opening indicator.
Lockable with padlock.

Download

Technical specifications

Fluid

Compressed air

Valve function

Valve 3/2

Normal position (rest)

Normally closed

Working temperature

32 to 140°F (0 to 60°C)

Type of operation

Manual by Lever

Control type

Direct

Working pressure

1.0 MPa

Mounting type

Direct installation in pipe
Modular with the same Series

Body material

Aluminum

Knob Material

Aluminum

Seals

NBR

Download CAD

Model	Connection	CAD & PDF
SHS200-01	1/8"
SHS200-02	1/4"
SHS300-02	1/4"
SHS300-03	3/8"
SHS400-04	1/2"
SHS500-06	3/4"
SHS500-10	1"
