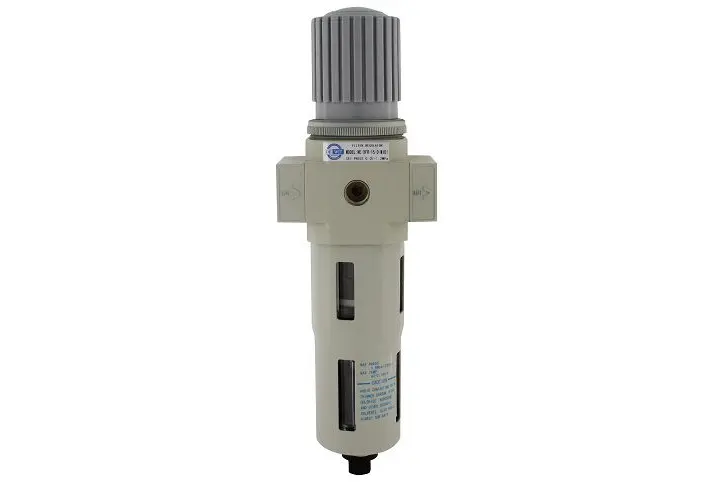

XFR Series - Filter regulator

Overview

A single module with two functions (Filter and Regulator).
Precise regulation.
Bowl With metal guard.
Locking rotary knob.
Two drain types available. Manual and automatic drain.

Download

Technical specifications

Fluid

Compressed air

Grade of filtration

5 μm

Pneumatic connection

M5, 1/8", 1/4", 3/8", 1/2", 3/4", 1"

Working temperature

32 to 140°F (0 to 60°C)

Set pressure range

0.05 to 1.2 MPa

Maximum pressure

0.1 a 1.6 MPa (manual)

0.15 a 1.2 MPa (automatic)

Body Material

Aluminum

Bowl Material

Polycarbonate / Aluminum (metal guard)

Seals

NBR

Download CAD

Modelo	Connection	CAD & PDF
XFR-06-MINI	1/8"
XFR-06D-MINI	1/8"
XFR-08-MINI	1/4"
XFR-08D-MINI	1/4"
XFR-10-MIDI	3/8"
XFR-10D-MIDI	3/8"
XFR-15-MIDI	1/2"
XFR-15D-MIDI	1/2"
XFR-20-MAXI	3/4"
XFR-20D-MAXI	3/4"
XFR-25-MAXI	1"
XFR-25D-MAXI	1"
