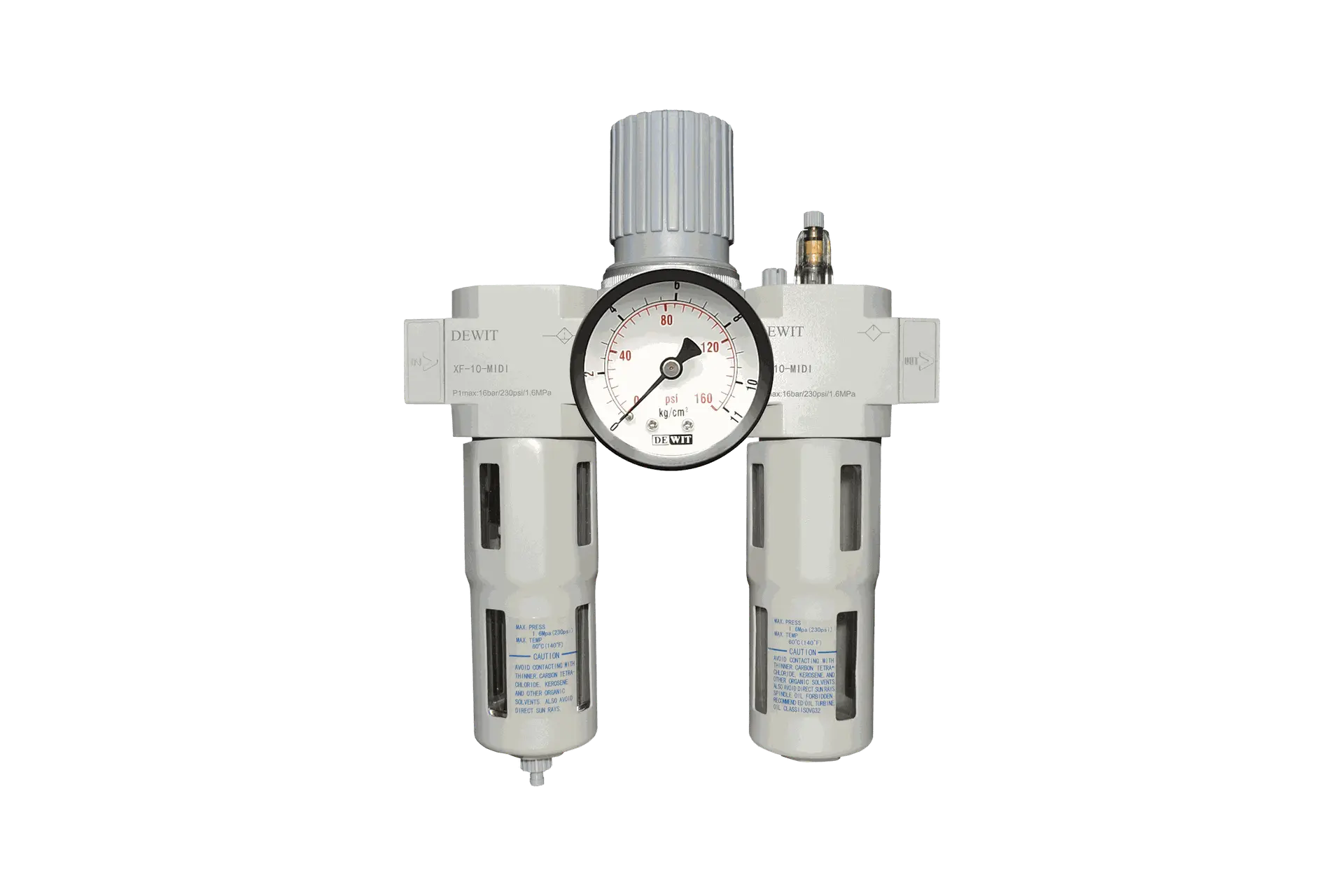

XFC Series FR/L

Overview

  • Filter Regulator and Lubricator in only 2 modules.
  • Smaller installation area and lower weight.
  • Locking rotary knob.
  • Lubrication adjustment knob.
  • Bowl with metal protection.
  • Two drain types available. Manual and automatic drain.

Download

Technical specifications

Fluid

Compressed air

Grade of filtration

5 μm

Pneumatic connection

M5, 1/8", 1/4", 3/8", 1/2", 3/4", 1"

Working temperature

32 to 140°F (0 to 60°C)

Pressure regulation range

0.05 to 1.2 MPa

Maximum pressure

1.6 MPa (Manual)

1.2 MPa (Automatic)

Body material

Aluminum

Bowl material

Polycarbonate with Aluminum Guard

Seals

NBR

Model

Connection

CAD & PDF

XFC-06-MINI

1/8"

 ​

XFC-06D-MINI

1/8"


XFC-08-MINI

1/4"


XFC-08D-MINI

1/4"


XFC-10-MIDI

3/8"


XFC-10D-MIDI

3/8"


XFC-15-MIDI

1/2"


XFC-15D-MIDI

1/2"


XFC-20-MAXI

3/4"


XFC-20D-MAXI

3/4"


XFC-25-MAXI

1"


XFC-25D-MAXI

1"




Related products

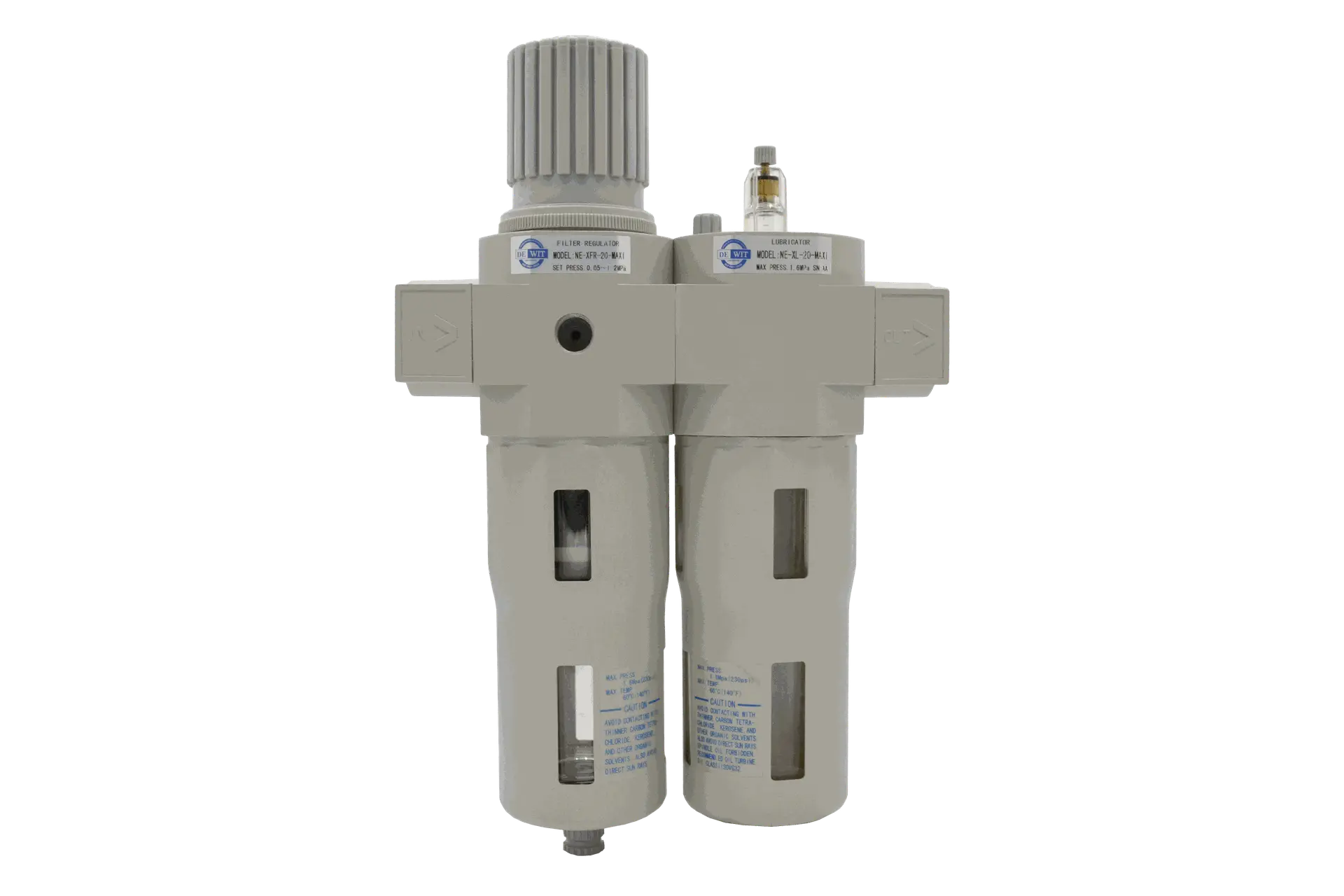

XC Series - FRL
